品牌: TC electronic 型号: Finalizer-96K
结合了强劲的96kHz处理工具及先进功能，FINALIZER 96K把世界上最专业的母带处理技术，带到每一个大型或小型的录音室内，FINALIZER 96K内置效果带给你多种不同程度的控制，可助你在处理最后混音时得到更佳效果。FINALIZER 96K更具备有多种分析工具如相位表，峰值定位表及调整电平用之讯号产生器。
WIZARD魔术功能，你只要回答数个简单问题如音乐种类，你想处理的效果类型等，便可替你选取一种合适的程序进行处理。更可插入内置效果：如在压缩器起作用前，加入均衡以使音乐更为丰满等。FINALIZER 96K实在是一件实用的录音室工具。
特性：
24比特96KHz数模及模数转换
·
AES/EBU，S/PDIF及Toslink @96KHz数字输入及输出接口
·
多段式频谱立体声声墙控制
· 单声道，立体声，由8-22比特互换式数字输出
· 实时取样频率转换
·
多段式压缩器
· 齿音消除器
· 动态均衡处理
· MS立体声编码/解码
· 2个同步处理插入组合
· 立体声调节及数字式洪亮声产生器
· 数字时钟输入
·
采样频率32 kHz ,44.1kHz
·
连接器XLR，平衡
· 最大输入电平+22dBu
· 最小输入电平-10 dBu
· 动态范围>103dB，
· 频率响应<-60dB,10 Hz-20kHz
· 输出范围-10 dBu-+22 dBu
· D/A转换24比

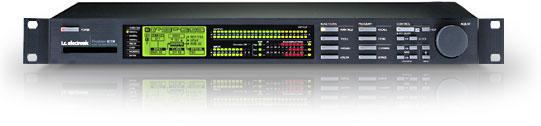

Finalizer 96K
The latest progression in TC’s Multi-Award winning mastering technology - the Finalizer 96K - delivers unprecedented levels of clarity, warmth and punch to your mix.
The Finalizer 96K's all new set of advanced features and enhancements, including 96kHz internal and external processing truly puts the world of professional mastering within reach of every studio - large or small.
Inserted between the stereo output of your mixer or workstation and your master recording media, the Finalizer 96K dramatically enhances your material, creating that "radio ready" sound - previously unattainable outside a professional mastering house.
Technical specifications
Digital Inputs and Outputs
Connectors
XLR (AES/EBU), RCA Phono (S/PDIF), Optical (Tos-link, ADAT)
Formats
AES/EBU (24 bit), S/PDIF (20 bit), EIAJ CP-340, IEC 958, EIAJ Optical (Tos-link), ADAT Lite pipe
Output Dither
HPF/TPDF dither 8-24 bit, mono, stereo, inverted
Word Clock Input
RCA Phono, 75 Ω, 0.6 to 10 Vpp
Sample Rates
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Processing Delay
0.2 ms @ 48 kHz, 0.1 ms @ 96 kHz
Frequency Response DIO
DC to 23.9 kHz ± 0.01 dB @ 48 kHz
DC to 47.9 kHz ± 0.01 dB @ 96 kHz
Compressor THD+N
-130 dB (0.00003%) @ 10 dB Compression, 20 Hz-20 kHz
Sample Rate Conversion Type
Asynchronous
Dynamic Range
130 dB
THD+N
-106 dB 44.1 to 48 kHz @ 1 kHz, -2 dBFS
Input Rate Range
31 kHz to 49 kHz
Analog Inputs
Connectors
XLR balanced (pin 2 hot)
Impedance
20 KΩ
Max.Input Level
·22 dBu (balanced)
Sensitivity
· 12 dB headroom: -22 dBu to +10 dBu
A to D Conversion
24 bit (6.144 MHz delta sigma @ 48/96 kHz)
A to D Delay
0.8 ms @ 48 kHz, 0.4 ms @ 96 kHz
Dynamic Range
>103 dB (unweighted, BW=22 kHz), >106 dB(A)
THD
-95 dB (0,0018 %) @ 1 kHz, -6 dBFS (FS @ +16 dBu)
Frequency Response
10 Hz to 20 kHz: +0/-0.2 dB @ 48 kHz
10 Hz to 45 kHz: +0/-1 dB @ 96 kHz
Crosstalk
<-60 dB, 10 Hz to 20 kHz, typical -90 dB @ 1 kHz
Analog Outputs
Connectors
XLR balanced (pin 2 hot)
Impedance
100 Ω (active transformer)
Max. Output Level
·22 dBu (balanced)
Full Scale Output Range
-10 dBu to +22 dBu
D to A Conversion
24 bit (6.144 MHz delta sigma @ 48/96 kHz)
D to A Delay
0.57 ms @ 48 kHz
0.28 ms @ 96 kHz>100
Dynamic Range
100 dB (unweighted, BW=22KHz), >104 dB(A)
THD
-82 dB (0.008 %) @ 1 kHz
-6 dBFS (FS @ +16 dBu)
Frequency Response
10 Hz to 20 kHz
·0/-0.5 dB @ 48 kHz
10 Hz to 45 kHz
·0/-3 dB @ 96 kHz
Crosstalk
<-60 dB, 10 Hz to 20 kHz
typical –90 dB @ 1 kHz
EMC
Complies with
EN 55103-1, EN 55103-2, Class B of FCC rules/part 15, Class B of CISPR 22
Safety
Certified to
IEC 65, EN 60065, UL 1419 and CSA E65
Environment
Operating Temperature
32° F to 122° F (0° C to 50° C)
Storage Temperature
-22° F to 167° F (-30° C to 70° C)
Humidity
Max. 90 % non-condensing
PCMCIA Interface
Connector
PC Card, 68 pin type 1 cards
Standards
PCMCIA 2.0, JEIDA 4.0
Card Format
Supports up to 2 MB SRAM
Control Interface
MIDI
In/Out/Thru: 5 Pin DIN
GPI, Pedal, Fader
¼" phone jack
General
Finish
Anodized aluminum front, Plated and painted steel chassis
LCD
Dimensions
56 x 128 dot graphic LCD-display
19" x 1.75" x 8.2 (483 x 44 x 208)
Weight
5.2 lb. (2.35 kg)
Mains Voltage
100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption
<20 W
Backup Battery Life
>10 years
Warranty
Parts and Labor
1 year
