TC Electronic现在位大家介绍System6000立体声版本的单引擎混响处理—Reverb4000。拥有来自System6000最好的混响和预置和M5000中最经典的效果。
Reverb4000也是第一个可以提供了处理复合立体声声源或者用来再2个独立声源之间生成可靠空间感的立体声混响器。
采用了历经30年发展的最新硬件和软件技术，Reverb4000提供了最宽广且具有革新性的State-of-Art立体声混响。它被设计成1U机架式效果器并且拥有非常直观的用户界面，以及可以用于Pche Mac OSX系统的软件编辑器。它是现场演出和录音棚立体声录音的最佳选择。
在录音棚
Reverb4000可以作为任何大型调音台的有益补充，并且为专业录音棚提供了最佳的主混响，它通过模拟真实空间结构来塑造最佳和TC的经典混响。处于质朴混响技术的最前沿，它具有极好的峰值储备、电平控制和模拟/数字接口的处理能力。
Reverb4000可以很好地与音频工作站整合在一起工作，拥有24bit的AD/DA转换器和44.1到96kHz的采样频率，提供足够的处理能力，而不会占用任何工作站的处理资源。通过USB接口与电脑连接在一起，使用ICON软件编辑器进行参数的调整。
扩声场合
快速调用的前面板是Reverb4000应用于扩声场合的最大优势。以前从来没有任何一款可以提供如此多种色彩感的主混响器，可以如此简单地进行操作。在个性的、平滑的和老式混响效果进行切换，只需要简单地触摸一个按钮。前面板总是保证可以随时修改最重要的参数。感谢最新的DSP、电源和TC Electronic制作最尖端混响的传统，新的Reverb4000能传递出最真实的立体声混响。
特性：
来自System6000的真正立体声混响
新的质朴立体声混响
来自M5000中最受欢迎的预置
从橱柜到山谷的真实环境
VSS-4，基于声源的混响带给空间特性
经典混响带来有光泽的混响保持
老式混响模拟，包括EMT250
可瞬间调用的用户界面
44.1k到96kHz的采样频率和24bit处理
单引擎，大空间的SRAM,不妥协的设计
包括PC/Mac Icon编辑器
24bit AES/EBU，Tos-Link，S/PDIF，ADAT和模拟输入输出
Reverb 4000 - The Offspring of a Giant
TC Electronic is now introducing Reverb 4000 a Single Engine Stereo version of System 6000 - featuring the best reverbs and presets from System 6000 and M5000 plus emulations of immortal classics.
Reverb 4000 is also the first stereo Reverb capable of rendering credible space onto two discrete sources, or to truly process a composite stereo source. Utilizing the latest hardware technology and software based upon 30 man-years of development, Reverb 4000 offers the most immense and innovative selection of State-of-the-Art stereo Reverbs - at the touch of a button. Designed as a single rack space module with an extremely easy to use instant access interface, and with the option of using the ICON software editor for PC (Mac OSX version available spring 2004) in DAW environments, the Reverb 4000 is the ultimate choice for live- and studio applications working in stereo.
In the Studio
Reverb 4000 complements any large scale mixing console, and provides the professional studio with the ultimate Main Reverb featuring an amazing palette of simulated rooms from natural sounding credible spaces to emulations of vintage reverbs and TC Classics. On top of offering front-edge pristine reverb technology, it features impressive headroom, level handling and analog as well as digital interfacing capabilities.

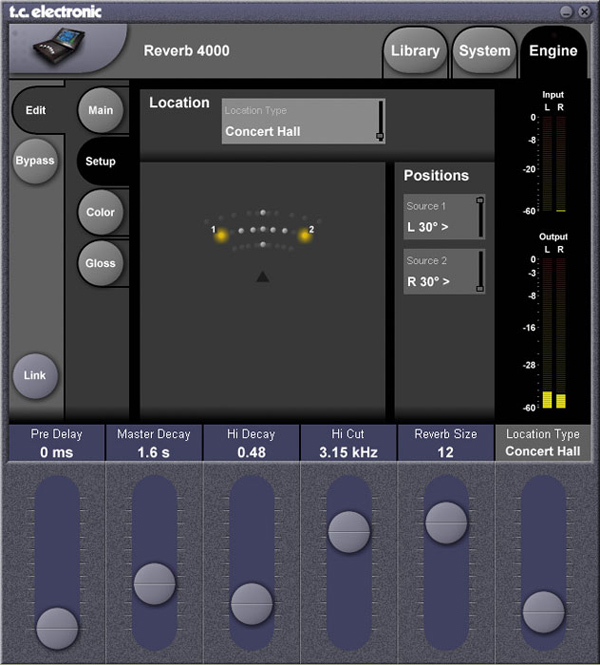

Reverb 4000 integrates perfectly with DAWs and features 24 bit AD/DA converters as well as 44.1 to 96kHz Sample Rates, hence offering processing power not obtainable inside any workstation available today. Connectable via USB the included ICON software editor provides easy access and complete overview for detailed editing purposes, and is a genuine tool in a studio environment.
At the Venue

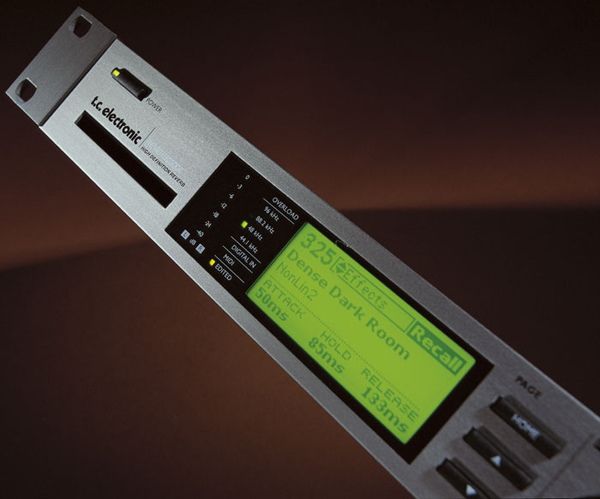

The Instant Access front panel is a great advantage for Live applications. Never before has a Main Reverb provided so many colors to the palette, and been so easy to operate. Switch between Character, Glossy and Vintage Reverb effects with just a single touch of a button. The front panel always keeps important parameters within reach, and thanks to the latest DSP and power supply technology, as well as TC Electronic’s heritage of making top-end reverbs, the new Reverb 4000 delivers the best true stereo reverbs imaginable.
Features in Reverb 4000 also include Generic Reverbs providing Polished Sustain, Vintage Reverb emulations, True Stereo Reverbs with several flavours, Favourite presets and algorithms from the past, Mono Reverbs covering arbitrary formats, Credible Environments spanning from claustrophobic to outdoor scenarios, Analog domain converter scaling with wide headroom and AES/EBU, S/PDIF, TOS-Link and ADAT digital I/Os.
Technical Specifications
Digital Inputs and Outputs

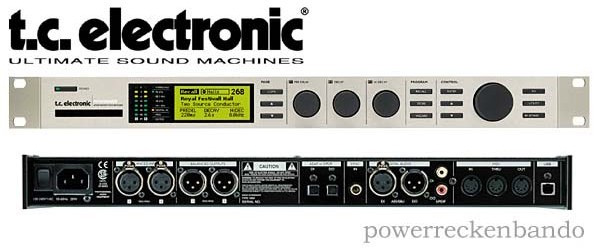

Connectors
XLR (AES/EBU)
RCA Phono (S/PDIF)
Optical (Tos-link, ADAT)
Formats
AES/EBU 824-bit),
S/PDIF (24 bit), EIAJ CP-340, IEC 958,
EIAJ Optical (Tos-link),
ADAT Lite pipe (24 bit)
Output Dither
HPF/TPDF dither 8-20 bit, independent dithered output
Word Clock Input
RCA Phono, 75 Ω, 0.6 to 10 Vpp
Sample Rates
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Processing Delay
0.2 ms @ 48 kHz
Frequency Response DIO
DC to 23.9 kHz ± 0.01 dB @ 48 kHz
DC to 47.9 kHz ± 0.01 dB @ 96 kHz
Analog Inputs
Connectors
XLR balanced (pin 2 hot)
Impedance
20 KΩ
Max. Input Level
·22 dBu (balanced)
Max Input Level (for 0 dBFS)
-10 dBu
Sensitivity
· 12 dB headroom: -22 dBu to +10 dBu
A to D Conversion
24 bit (6.144 MHz delta sigman @ 48/96 kHz)
A to D Delay
0.8 ms @ 48 kHz, 0.4 ms @ 96 kHz
Dynamic Range
>103 dB (unweighted, BW = 22 kHz), >106 dB(A)
THD
-95 dB (0,0018 %) @ 1 kHz, -6 dBFS (FS @ + 16 dBu)
Frequency Response
10 Hz to 20 kHz : +0/-0.2 dB @ 48 kHz
10 Hz to 45 kHz : +0/-1 dB @ 96 kHz
Crosstalk
<-80 dB, 10Hz to 20 kHz
typical -100 dB @ 1 kHz
Analog Outputs
Connectors
XLR balanced (pin 2 hot)
Impedance
100 Ω (active transformer)
Max. Output Level
·22 dBu (balanced)
Full Scale Output Range
-10 dBu to +22 dBu
D to A Conversion
24 bit (6.144 MHz delta sigman @ 48/96 kHz)
D to A Delay
0.57 ms @ 48 kHz, 0.28 ms @ 96 kHz
THD
-82 dB (0.008 %) @ 1 kHz, -6 dBFS (FS @ + 16 dBu)
Frequency Response
10 Hz to 20 kHz : +0/-0.5 dB @ 48 kHz
10 Hz to 45 kHz : +0/-3 dB @ 96 kHz
Crosstalk
<-60 dB, 10Hz to 20 kHz
typical -90 dB @ 1 kHz
EMC
Complies with
EN 55103-1 and EN 55103-2
FCC part 15, Class B
CISPR 22, Class B
Safety
Certified to
IEC 60065, EN 60065, UL 6500 and
CSA E65
CSA File£LR108093
Enviroment
Operating Temperature
32° F to 122° F (0° C to 50° C)
Storage Temperature
-22° F to 167° F (-30° C to 70° C)
Humidity
Max. 90 % non-condensing
PCMCIA Interface
Connector
PC Card, 68 pin type 1 cards
Standards
PCMCIA 2.0, JEIDA 4.0
Card Format
Supports up to 2 MB SRAM
Control Interface
MIDI
In/Out/Thru: 5 Pin DIN
General
Finish
Anodized aluminum front
Plated and painted steel chassis
Display
56 x 128 dot graphic LCD
Dimensions
19" x 1.75" x 8.2" (483 x 44 x 208 mm)
Weight
5.2 lb. (2.35 kg)
Mains Voltage
100 to 240 VAC, 50 to 60 Hz
(auto-select)
Power Consumption
<20 W
Backup Battery Life
>10 years
Carry-in Warrenty
Parts and labor
